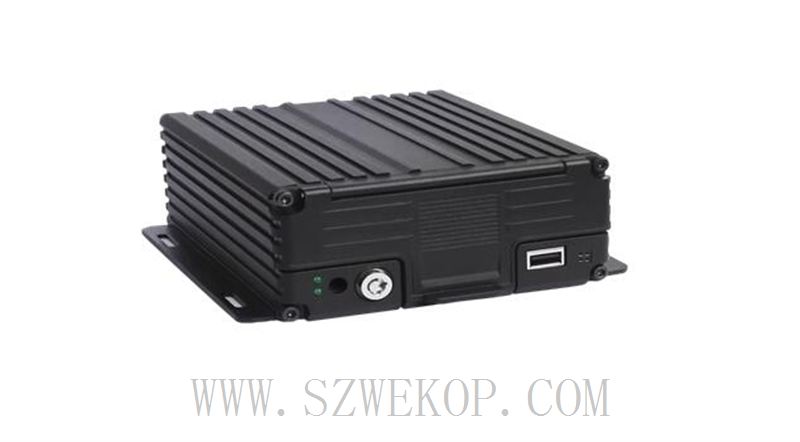

4CH HD-AHD 720P/960H/D1/CIF optional HDD MDVR/NVR 3G 4G GPS WIFI Realtime Vehicle Mobile DVR
Click to View PDF Product Datasheet:
4G HD intelligent camera WP-M91ST
•Model Number：WP-MR9704CTL
•Video input：4 Channels
•Storage：2.5 inch HDD/SSD 2TB,256GB SD
•Audio input：2 Channel audio input
•Audio output：1 Channel Audio Output
•Funtion ：3G/4G /WIFI/GPS/BD
•Storage：Support Up to 256G SD card
•Resolution：720P/4ch 960H/2ch 720P+2ch 960H
Description :
Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output 4CH local recording with 720P resolution in real time
Power:
Professional In-Vehicle power design, 10-36V DC Wide Voltage Range
Multi protection circuits like under-voltage, short, reversed plug-in
Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
Built-in ultra capacitor, avoid data loss and sd card damage caused by sudden outage
Support 2.5 inch HDD/SSD, maximum 2TB
Support SD card storage, maximum 256GB
Transmission Interface:
Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Support GPS/BD optional, high sensitivity, fast positioning
Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
| Technical parameter: | ||
| Item | Device parameter | Performance |
| System | Main processor | Hi3520DV200 |
| Operating system | Embedded Linux OS | |
| Operating language | Chinese/English | |
| Operating interface | GUI, support mouse | |
| Password security | User password/Admin password | |
| Audio
& Video
|
Video standard | PAL/NTSC |
| Video compression | H.264 | |
| Image resolution | 720P /960H/D1/CIF | |
| Playback quality | 720P /960H/D1/CIF | |
| Compound mode | 4ch 720P/4ch 960H/2ch 720P+2ch 960H | |
| Decoding ability | 1ch 720P real time | |
| Recording quality | Class 1-6 optional | |
| Image display | Single/QUAD display optional | |
| Audio Compression | G.726 | |
| Audio recording | Audio & Video synchronized recording | |
| Recording & Playback | Recording mode | Manual/Alarm |
| Video bit rate | Full frame 4096Mbps，6 classes image quality optional | |
| Audio bit rate | 8KB/s | |
| Storage media | SD card + HDD/SSD storage | |
| Video inquiry | Inquiry by channel/Recording type | |
| Local playback | Playback by file | |
| Firmware upgrading | Upgrading mode | Manual/Automatical/Remote/Emergency Recovery |
| Upgrading method | USB disk/Wireless network/SD card | |
| Interface | AV input | 4ch aviation interface |
| AV output | 1ch VGA video output, 1ch aviation AV output | |
| Alarm input | 4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger) | |
| HDD/SSD | 1 HDD/SSD (up to 2TB, support hot plug/unplug) | |
| SD card | 1 SDXC High speed card (up to 256GB) | |
| USB interface | 1 USB 2.0 (support U disk/mouse) | |
| Ignition input | 1 ACC signal | |
| UART | 1 LVTTL Level | |
| LED Indication | PWR/RUN | |
| Disk lock | 1 | |
| Debug port | 1 | |
| Function extention | GPS/BD | Support detecting antenna Plug in/Unplug/Short circuit |
| 3G/4G | Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE | |
| WIFI | 802.11b/g/n, 2.4GHz | |
| Others | Power input | 10~36V DC |
| Power output | 5V 300mA | |
| Power consumption | Standby 3mA
Maximum consumption 18W @12V 1.5A @24V 0.75A |
|
| Working temperature | -20 — 70℃ | |
| Storage | 720P 24G/day/channel
960H 12-20G/day/channel |
|
| Dimension | 162mm*153mm*52mm | |
Customizable Solutions For Different Applications
