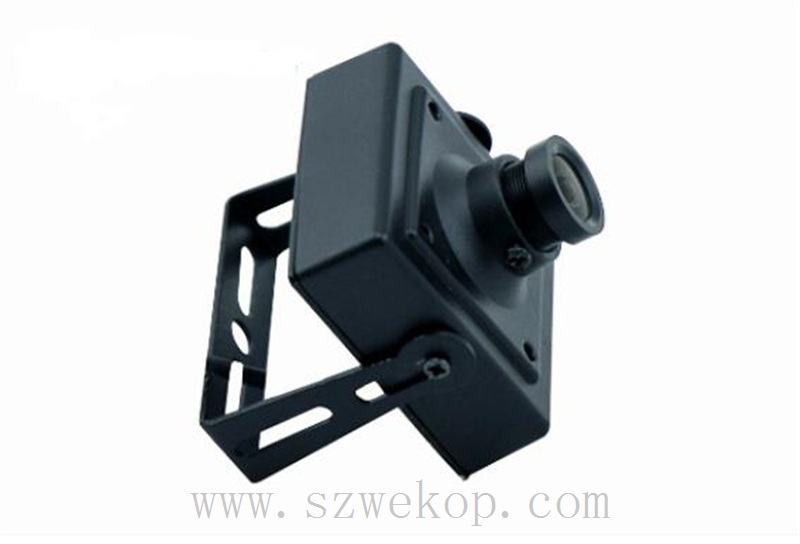

HD-AHD 720P, Pinhole/Hidden IR Front View IP 67 Waterproof 130 Degree View
Model No.: WP-AHD720P-PH
Click to view PDF product datasheet:
Pinhole Taix Front View Camera (Products Details)
Features:
- 2 Pieces LED, 5meters IR distance, DC12V input
- Zn-Al alloy housing with IP67 waterproof
- Anti-electromagnetic interference, excellent video output
- High quality IR LED, no infrared lead exposure facula
- Low power consumption, wide temperature working
- Easy installation, vehicle surface or flush mount
Specifications:
| Model No. | WP-AHD720P-ph |
| CCD or CMOS | 1/3″CMOS 720P |
| Resolution | 1.30 Mega Pixel |
| Effective Pixels | PAL: 1280Hx960V; NTSC: 1280H×720V |
| TV System | PAL / NTSC (Optional Before Factory) |
| Auto Control | Auto Gain Control, Back Light Compensation, White Balance, Electronic Shutter |
| Image Mirror | Optional Before Factory |
| Lens | f=2.35mm View Angle 130 degree. Optional 2.1(160°), 3.6mm |
| Light Sensitivity | 0 Lux @ F1.2 (IR ON) |
| Infrared Spectrum | Infrared-Sensitive |
| Infrared LED Range | Null |
| Auto IR control | Null |
| Signal to Noise Ratio | SNR＞50 dB, (AGC Close) |
| Video Output | AHD 1V p-p, 75Ω, |
| Audio Output | Paid Optional, Non Waterproof |
| Power Consumption | 12V DC ± 5%，80mA，0.9W |
| A / V, Power Interface | Aviation, 4PIN interface optional |
| Adjustment | Horizontal 0~45; Vertical 0~90 |
| Dimensions | (L x W x H) 25 x 24 x 34 mm |
| Packing Size | (L x W x H) 80 x 80 x 60 mm |
| Product Weight | Net: 55 g, All: 120 g |
| Water Proof | Null |
| Operating Condition | Temp.:-25°C to +55°C, Humidity＜95% |
| Housing Color | Black, Optional Color By Order Quantity |
view Pinhole Camera HD- AHD1/3″CMOS 720P 1.30 Mega Pixel Aviation ,4pin 5559, BMW Com Optional. Specifications are subject to change without prior notice.
Packing List:
Camera x1
Instruction manual x1
Self-Drilling Screw x1
Mounting Plug x3
Please ensure that the product work in the appropriate environmentCautions:
Dimensions:
- Twist off screws on both sides, camera cable through the hole from the bracket
- Screws mounting the bracket, camera body with screws limited on both sides
- Power on, adjust the camera until the output image appears appropriate scene, locking screws on both sides
- Cable hidden in the body and opening waterproofing, the camera installed
Camera video surveillance for commercial vehicle:
Application to :
School bus;cargo truck, Taxi ; truck; and so on
