Driver Behavior Analysis Terminal /(Driver Status Monitoring System (DSM))
Click to View PDF Product Datasheet:
Updated-Driver Status Monitor Functional Terminal Specification
https://youtu.be/ndm392aStLQ （Video ）
Features :

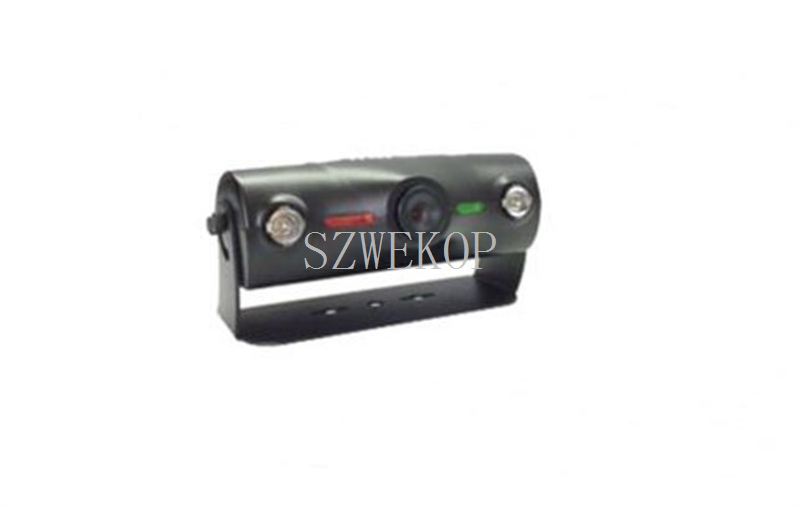

Model No.:WP-DSM-E
Fatigue Driving Warning :
WF-DSM-Monitors the driver’s facial fatigue status, eyes and mouth in real time
Detection the fatigue status on driver’s face, use the audio early warning the driver
Careless Driving Warning :
WF-DSM-F monitoring the times and angle of driver’s head deviation from the front
The driver will be warned if his head continues to deviate from the front road
This feature can help most drivers gradually change their careless driving habits
Driver Departure Warning:
WF-DSM-F continue to monitor whether the driver is on driving seat
The driver’s body deviates from the position will be warned by the product when driving
It can remind the driver to avoid the accident caused by stooping to pick something up
Why the cars need to install the Driving System, Due to it can help drivers to reduce the accident happened :
SAFETY:
Sensitive and accurate product function to help the driver avoid dang
PRACTICAL
Each product function effectively to remind the drivers drive safely
QUALITY
Industrial quality chips and great circuit design to ensure steady performance
SPEEDY
The product has speedy convenient installation and easy usage
Fatigue Driving Warning
- Monitors the driver’s facial state, mouth and eyes in real time
- Remind the driver to stop and rest when the driver is tired
- Makes a serial urgent voice when the driver in the different tired
- More than 54% of long-distance vehicle drivers have experience driving to sleep

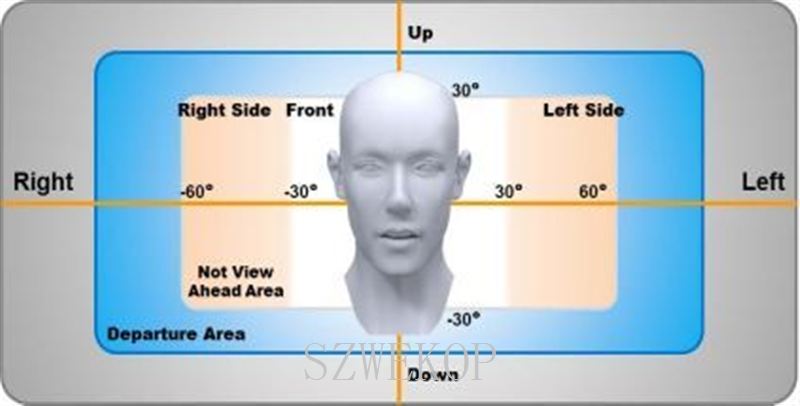

Careless Driving Warning
- Continued to monitor the steering movement of driver’s head
- Remind the driver Attention Road when the head continues to tilt one side
- Makes a serial voice when the driver always glance right and left
- More than 45% of drivers have a habit of careless driving

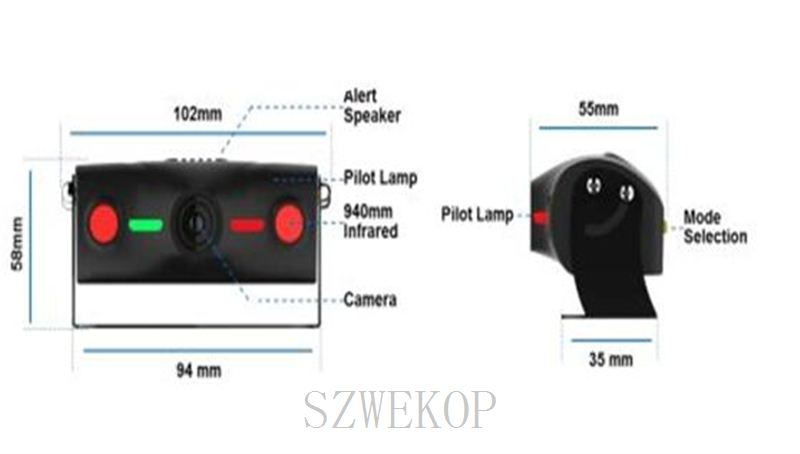

Fatigue Driving Size :
Application:
Recommended installation position: above the bridge, the central position of the steering wheel
Installation distance: Max150cm (recommended distance: 90cm~100cm)
- Determine the installation location and remove foreign objects;
- Composite host and bracket;
- Open the bottom double-side adhesive sticker and paste in the right position of the bridge;
- Connect the power;
- Adjust the camera lens position so that it can effectively identify the driver’s view.
In the case of navigation, connect the AV line to the host AV port and the navigation AV port and adjust according to the driver’s face that appears in the navigation screen
The Distance of Driver to Drowsy Driving is about 45--95CM
Driver Fatigue products need to install Face The Driver .
Application :
Application:
WF-DSM-F surveillance for commercial vehicle:
Recommended installation position: above the instrument panel, the central position of the steering wheel
Installation distance: Maximum linear distance95cm (recommended distance: 45cm~95cm)
► Determine the installation location and remove foreign objects;
► Choose the appropriate material (3M adhesiveor screws) to hold the bracket in the predetermined position;
► Adjust the product until the driver’s inverted image in the normal sitting position appears in the lens;
► 5 secondsafter connect the power, the left lightRedshining, the sound is “Da Dong Dang Dong”,itready;
► The left light Green,the sound is “Di Dong”, identified and positioned the driver’s face is finished, detection start;
► When the driver is driving, the left light Red, the sound is “Ba~~”, it detects fatigue features in drivers;
Itdetected sustained fatigue in the driver, the left light change Red, the hurrying sound is “Di Da Di Da Di Da”;
► The left light Blue, the sound is “Dong~~ Dong~~”, it detected the driver not attention the front road then warning;
► When the vehicle is moving, the driver out of the detection area, the left light Red, the sound is “Di Da~ Di Da~”;
In the case of navigation, connect the AV line to the host AV port and the navigation AV port and adjust according to the driver’s face that appears in the navigation screen
The indicator light of the product gives out a weak level of visible light, without effect on the driver’s vision and not cause any damage to the driver’s eyes.
