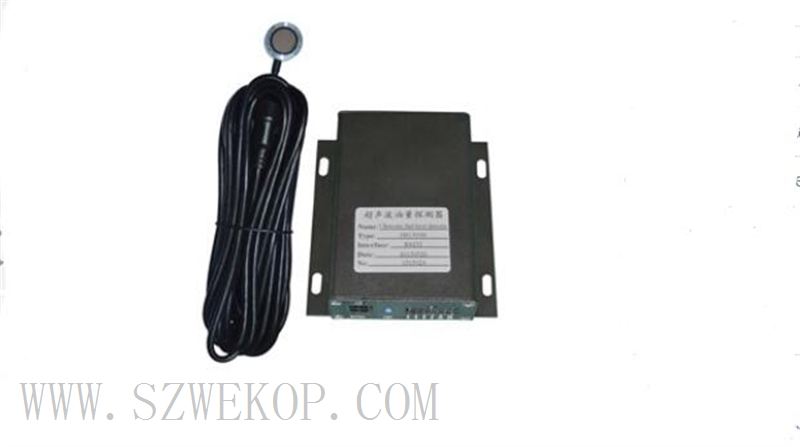

Fuel Tank Level SensorFor Cars,Truks,Heavy Commercial Vehicles
- Model Number：WP-DS1309BST
- Voltage: 9V-48V
- Power supply ripple：Less than 100mV
- Operating current：Less than 30mA
- Measuring distance：3cm to 100cm
- Resolution：0.1mm
- Measurement accuracy：0.5%
- Temperature compensation range：-40 ℃- +80 ℃
-
Description:
This ultrasonic fuel level detector uses the ultrasonic detection technology to measure the height of fuel level in container and output a standard electrical signal after through circuit processing. Ultrasonic sensors outer adheres on the bottom of the fuel tank and no need directly to contact with the fuel level that could be real-time detection the height of fuel level. It could be widely used in various types of vehicles for fuel measuring and monitoring, also could be combined with GPS/GPRS communication technology, through the computer software management platform to achieve scientific management vehicles, prevent fuel theft behavior and save the vehicle operating cost.
Usage:
1) Fuel level measurement of various kinds of vehicles (for current fuel capacity, refuel, fuel consumption and anti-theft fuel);
2) In industrial: Measuring liquid displacement, thickness, distance, liquid level, material level …it is suitable for measuring the level of medium, liquid gas medium height measurement;
Technical parameters:
Data Processor Operating Voltage DC9V-48V Power supply ripple Less than 100mV Operating current Less than 30mA Measuring distance 3cm to 100cm; Resolution 0.1mm Measurement accuracy 0.5% Temperature compensation range -40 ℃- +80 ℃ Output mode: Analog output Voltage output (default) 1-5V (corresponding 0-100cm) Current output (optional) 4-20mA (corresponding 0-100cm) Digital output RS232(default) See the “communication protocol” RS485(optional) Anti-theft alarm output need external connection a alarming horn to achieve alarm Install method bottom of fuel tank/can, water tank Material of tank/container Iron,aluminum,stainless steel Thickness of material Within 5.5mm Operating temperature -40 ℃ – +80 ℃ Storage temperature -50 ℃ – +100 ℃ Size Ultrasonic transducer Operating temperature -40 ℃ – +80 ℃ IP grade IP66 Cable length 8m, with shield Gross weight(G) 770g
