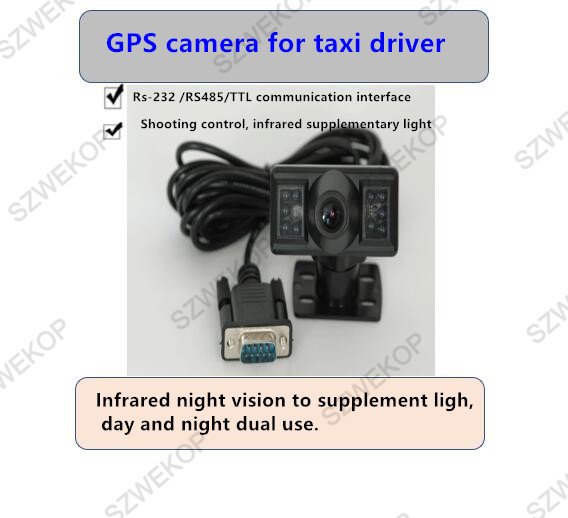

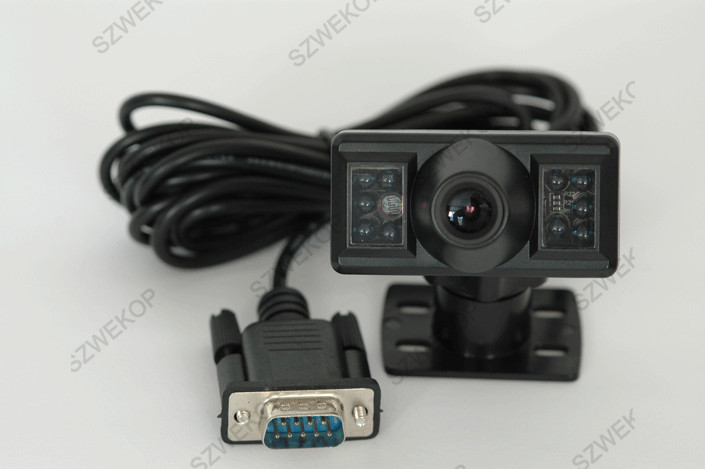

GPS Vehicle Camera For Taxi driving
Description:
Serial port camera is a set of image acquisition, shooting control, infrared supplementary light, data compression, serial port transmission in one of the industrial level image acquisition and processing equipment.The built-in high performance digital signal processing chip realizes the high proportion compression of the original image.The product image output adopts standard JPEG format, which can be easily compatible with various image processing software.The standard rs-232 /RS485/TTL communication interface and simple image transmission protocol make it easy for the camera to connect with computers and various embedded systems.Equipped with infrared night vision to supplement light, both day and night.
Parameters:
Size: length 55* width 45* height 27 (MM)
Communication mode: RS232/RS485/TTL (optional)
Baud rate: 9600-115200 (adjustable)
● voltage: dc4.5-5.5v (customizable 7-36v)
● supplementary light :8 lights
● working current: 62mA during the day and ≤200mA at night
