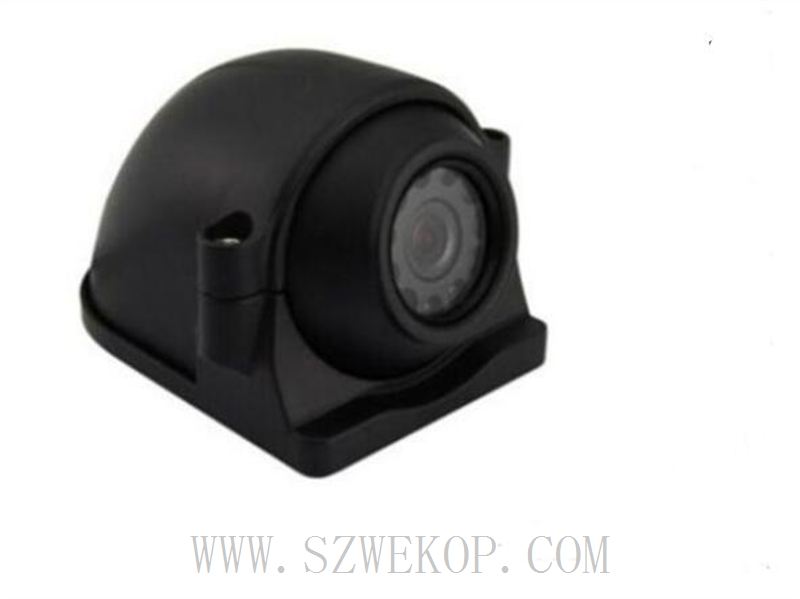

Vehicle Camera AHD 960P Infrared Side IP67 Waterproof Wide Angle
Click to View PDF Product Datasheet:
IR Vehicle side camera
- Model No.:WP-AHD960S1
- 1/2.9″Aptina 0130 with Nextchip2431
- 960P Solutions
- Signal system：PAL/NTSC
- Pixel：1280（H) x 960(V)
- Standard 3.6mm lens
- Backlight compensation：
- Wide viewing angle, adjustable bracket
- Water proofing, IP67
- Appropriative aviation connector design
- Built in imported 12 pcs Φ5 IR LED lights, 5m shooting distance
- Adjustable bracket
- Low power consumption, easy dissipate heat
Specifications:
| Model | WP-AHD960S |
| Image sensor | 1/2.9″Aptina 0130 with Nextchip2431 |
| Resolution | 960P |
| Signal system | PAL/NTSC |
| Pixel | PAL/NTSC：1280（H) x 960(V) |
| Lens | Standard 3.6mm lens |
| Minimal illumination | 0Lux |
| Backlight compensation | Built-in |
| Shutter speed | 1/53~1/100,000（Sec）
1/53~1/100,000 sec |
| White balance | Automatic tracking |
| noise-signal ratio | ＞50db (AGC OFF) |
| Video output | 1.0Vp-p,75Ω |
| Power | DC12V±10% |
| Consumption | ≤3W |
| working temperature | -20℃ ~ +60℃ |
| Infrared wavelength | 850nm |
| Infrared lamp quantity | Φ5 12LED light |
| Infrared lamp Irradiation distance | 5M |
| Infrared lamp turn on brightness | ＞3Lux |
| Connector | VIDEO OUT (Appropriative aviation connector) |
