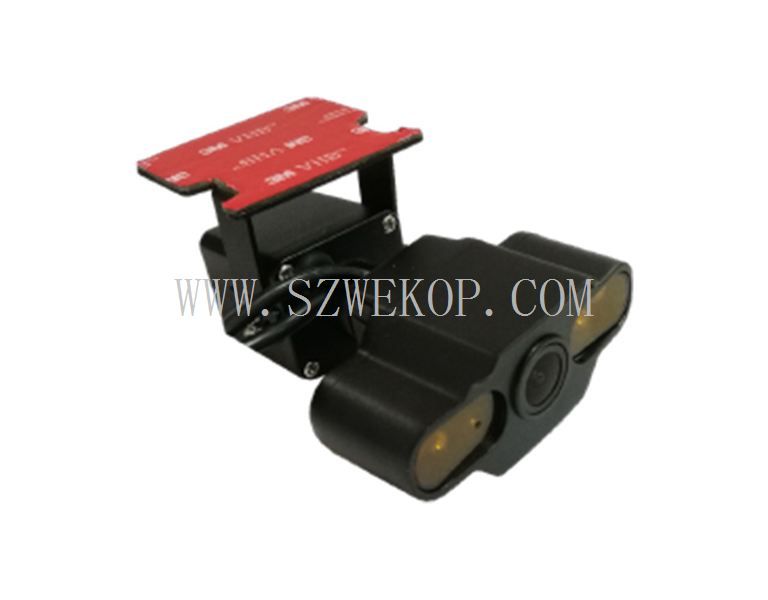

Vehicle Dual Lens Camera With Wide Angles IR Audio
- Model No.:WP-AN-DL01
- Aluminium allow housing.
- Wide angle lens.
- Cam2 Optionl 120 dB Real WDR.
- Strong light inhibition.
- Cam1 Build-in IR LED.
- Cam1 Audio output
Specification :
Camera 1
Model |
WP-AN-DL01-U |
Image Sensor |
1/3”CMOS AR0130 |
TV System |
PAL/NTSC (optional) |
Picture Elements |
1280 (H) x960 (V) |
Sensitivity |
0Lux (IR LED On) |
Scanning System |
Progressive scan RGB CMOS |
Synchronization |
Internal |
S/N Ratio |
More than 44dB (AGC Off) |
Auto Gain Control (AGC) |
Auto |
Electronic Shutter |
Auto |
BLC |
Auto |
Infrared Spectrum |
940nm |
Infrared LED |
6 LEDs |
Video Output |
1 Vp-p, 75Ω,AHD |
Audio |
Available |
Mirror |
Optional |
ICR |
N/A |
Noise Reduction |
3D |
Dymamic range |
83.5 dB |
Lens |
f2.5mm Megapixel |
| Pan Adjusting | 0-50° |
| Tilt Adjusting | 0-50° |
| Power Supply | 9-18V DC |
| Power Consumption | 110mA |
| Weatherproof/Water Proof | N/A |
| Operating Temperature | -30°Cto +70°C |
Camera 2
Model |
WP-AN-DL01 |
Image Sensor |
1/3”CMOS AR0130 |
TV System |
PAL/NTSC (optional) |
Picture Elements |
1280 (H) x960 (V) |
Sensitivity |
0.1 Lux/F1.2 |
Scanning System |
Progressive scan RGB CMOS |
Synchronization |
Internal |
S/N Ratio |
More than 44dB (AGC Off) |
Auto Gain Control (AGC) |
Auto |
Electronic Shutter |
Auto |
BLC |
Auto |
Infrared Spectrum |
N/A |
Infrared LED |
N/A |
Video Output |
1 Vp-p, 75Ω,AHD |
Audio |
N/A |
Mirror |
Optional |
ICR |
N/A |
Noise Redution |
3D |
Dymamic range |
83.5 dB |
Lens |
f2.5mm Megapixel |
| Pan Adjusting | N/A |
| Tilt Adjusting | 0-80° |
| Power Supply | 9-18V DC |
| Power Consumption | 60mA |
| Weatherproof/Water Proof | N/A |
| Operating Temperature | -30°Cto +70°C |

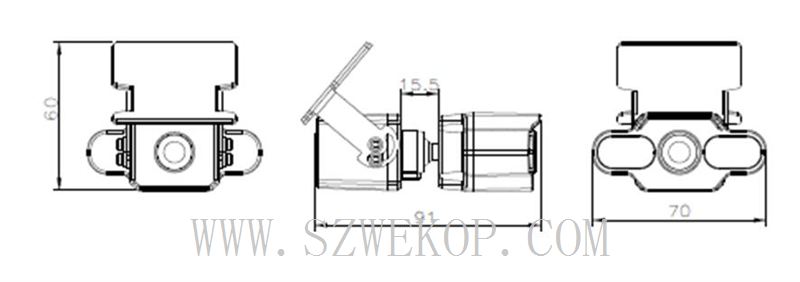

Size:
Operation procedures:
1.Adjust the position of (1) to change the angle of inner-forwarding camera 1.
2. Adjust the position of (2) to change the angle of out-forwarding camera 2.
3. Take off the 3M sticker of (3) to fix the whole camera to needed place.

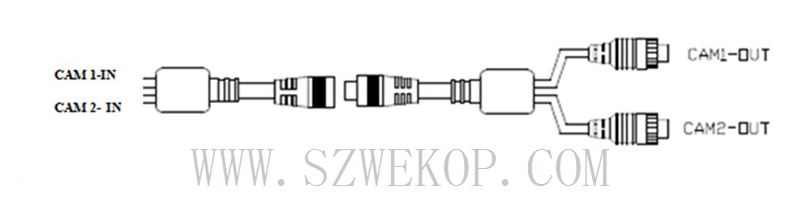

4.Connect the cableas belows.
