Vehicle PTZ Camera HD IR IP Support PelcoD-P Protocol MicroSD Storage
Click to View PDF Product Datasheet:

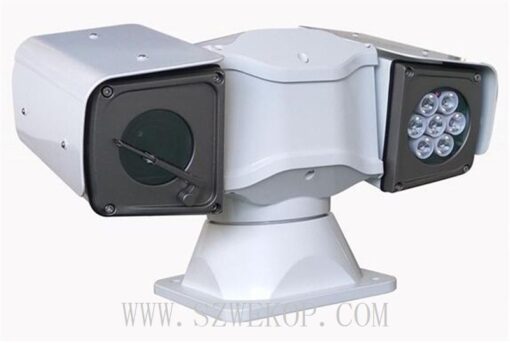

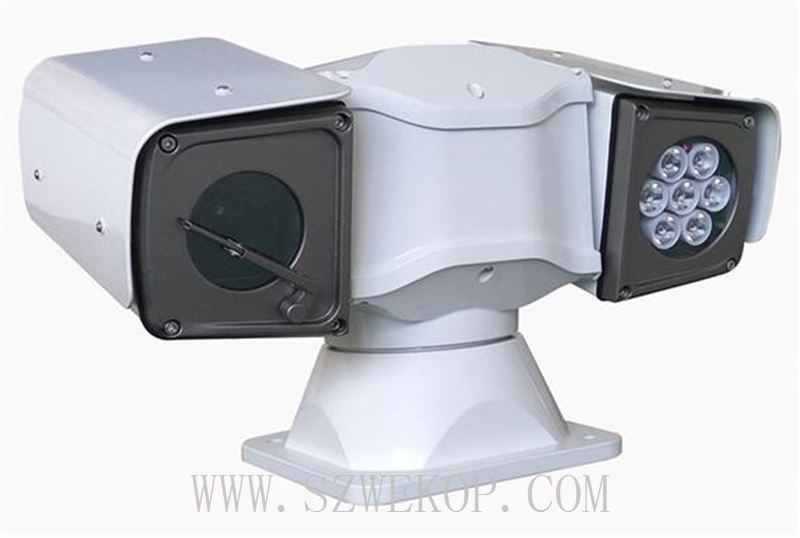

Vehicle PTZ Camera
Features:
- The first independent defogging defrosting module, solve the camera and lens fogging
- High-quality heating parts are used in the camera housing, so that the whole housing can work together to form an effective antifogging and defogging
- PTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.
- PTZ standard with the original regulator module, filter the vehicle transient current instability, so that PTZ remains stable
Night Vision Supplement: PTZ adopts imported array infrared lights，Multi-angle work together, the working life up to 30,000 hours, night vision is 100-120 meters
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
Specification:
| PTZ Function | |
| Pan preset speed | 100°/s |
| Tilt preset speed | 60°/s |
| Pan control speed | 0°~60°/S |
| Tilt control speed | 0°~40°/S |
| Pan range | 360°endless rotation |
| Tilt range | +90° ~ -90° |
| Preset positions、Tracking | 256 positions 8 tracking, Preset accuracy±0.10 |
| IR Distance | 2 groups lens, 100m night vision |
| Control Way | RS485, Built-in PELCO D/P 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
| Relative Humidity | Less than 90% |
| IP Grade | IP66 |
| Working Temperature | -35° ~ +65° |
| Impact resistance requirements | ≥4G |
| Wiper | Support |
| Installation | Variety of installation according to the environment |
| Weight | 7kg |
| Network parameters： | |
| Video Compression | H.264/H.265 |
| Audio Compression | G.722.1、G.711-alaw、G.711-ulaw、MP2L2、G.726 |
| Compression output rate | 32Kbps—12Mbps |
| Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UpnP, SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP optional)、GB28181 |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
| Communication Protocol | PelcoD-P Protocol |
| Storage Function | Support MicroSD storage |
| Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake
|
| General function | Dual stream, heartbeat, password protection |

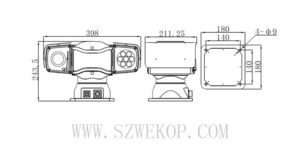

Measures and Diagram：(mm)

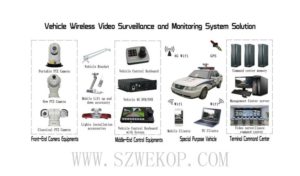

Application:
110 police mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection

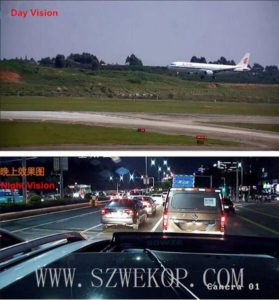

Night Vision :
Day Vision :
Monitor View :

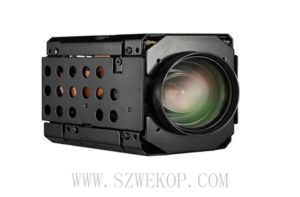

Product Name:20x 2.10MP day night network hd camera
- Model No.:WP-PTZN03
- Progressive Scan 1/2.8″ CMOS
- Max Resolution up to 1920×1080
- 20x zoom optical，focus length 4.7-94mm
- Min illumination：color 0.05lux@F1.6
- Support ICR ir filter automatic switching
- Support digital wide dynamic、3D-DNR function
- Support OSD overlay function，Personalized menus are available
- Focus fast and accurate
- Low bit rate, high image
- Support H.265 Efficient compression algorithm，Greatly reduce the bit rate
- Netword hd signal output
- Interface rich，convenient function expansion
- Seamless access to mainstream platforms and other network devices
- Small size, low power consumption, green
- Optional interface board, easy access to dome camera, ptz
| 20x,2.10 Mega pixel 1/2.8″ Progressive Scan CMOS ICR day&night hd ip camera module | ||
| camera | Image sensor | 1/2.8″ Progressive Scan CMOS |
| Scanning system | Progressive Scan | |
| Signal system | PAL/NTSC | |
| S/N Ratio | >52dB | |
| Video output | Network coding output | |
| Resolution | 50HZ:25fps(1920×1080) 60HZ:30fps(1920×1080) 50HZ:25fps(1280×720) 60HZ:30fps(1280×720) |
|
| Lens | Focal length | 4.7-94mm，20 zoom optical |
| Aperture | F1.6-F3.5 | |
| Pan viewing angle | 61.4-2.9°(wide angle-telescope) | |
| Close-up | 10-1500mm(angle-telescope) | |
| Zoom speed | About 2.7 second(optical，wide angle-telescope) | |
| Day&night | ICR filter | |
| Compression standard | Video compression standard | H.265/H.264 |
| Compression output coding rate | 32kbps-12Mbps | |
| Audio compression standard | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM | |
| Network function | Support protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、optional) |
| Function | Focus mode | automatic/manul/one focus |
| Exposure mode | Automatic explosure/aperture first/shutter first/manual first | |
| Day&night | automatic/color/white black | |
| Electronic shutter | 1/1 second ~ 1/30,000 second | |
| Wide dynamic | 4 grade adjustable | |
| Explosure compensation | 10 grade adjustable | |
| External interface | 36pin FFC (including network port、RS485、RS232、CVBS、SDHC、Alarm In/Out、Line In/Out、power) | |
| General specification | Working temperature and humidity | （-10° ~ 60°），less than 90％RH |
| Power Supply | DC12V±10% | |
| Power Consumption | Static 2.5W，dynamic 4.5W | |
| Measure(mm) | 50×60×88 | |
| Weight | 265g | |

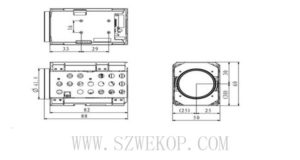

Size :
